CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSB1303 SERIES

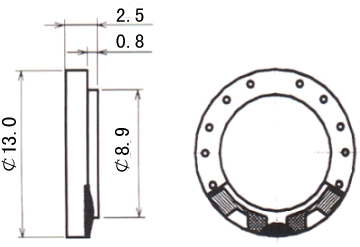

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSB1303

Rated Impedance

32±15％(Ω)

Rated /Max.Power

0.01(W)/0.03(W)

Resonance Frep.(F0)

—

Frep.Range

300Hz～3400Hz

Sound Pressure Level

121.0dB/1KHz/0.01W

Weight

0.9g





◆   Value appling rated voltage



Tel:+86-519-6464518     Fax: +86-519-6464189
