CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSB1801 SERIES

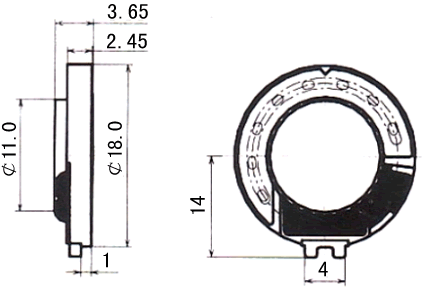

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSB1801

Rated Impedance

8±15％(Ω)

Rated /Max.Power

0.3(W)/0.5(W)

Resonance Frep.(F0)

900±180(Hz)

Frep.Range

F0～20K(Hz)

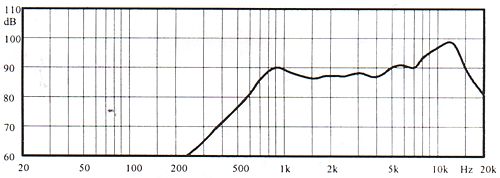

Sound Pressure Level

86.0dB/0.1m/0.1W

Weight

1.5g





◆   Value appling rated voltage



Tel:+86-519-6470130     Fax: +86-519-6464180
