CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSB2001 SERIES

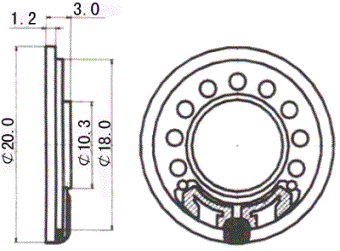

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSB2001

Rated Impedance

8±15％(Ω)

Rated /Max.Power

0.3(W)/0.5(W)

Resonance Frep.(F0)

800±160(Hz)

Frep.Range

F0～5000(Hz)

Sound Pressure Level

82.0dB/m/W

Weight

2.7g





◆   Value appling rated voltage
