CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSB3201 SERIES

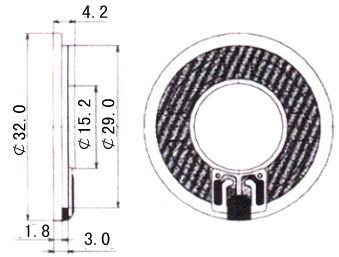

DIMEMSIONS     Unit:mm     Tolerance:±0.5







SPECIFICATIONS



Model No

QSB3201

Rated Impedance

8±15％(Ω)

Rated /Max.Power

0.4(W)/0.7(W)

Resonance Frep.(F0)

600±120(Hz)

Frep.Range

F0～6000(Hz)

Sound Pressure Level

87.0dB/m/W

Weight

6.6g





◆   Value appling rated voltage



Tel:+86-519-6470130     Fax: +86-519-6464180
