CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSB4001 SERIES

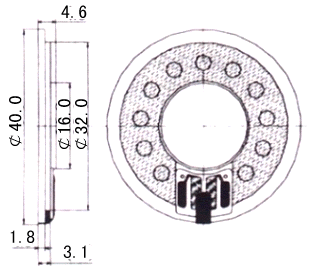

DIMEMSIONS     Unit:mm     Tolerance:±0.5







SPECIFICATIONS



Model No

QSB4001

Rated Impedance

8±15％(Ω)

Rated /Max.Power

0.5(W)

Resonance Frep.(F0)

450±120(Hz)

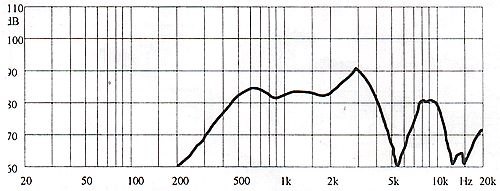

Frep.Range

F0～4.5K(Hz)

Sound Pressure Level

87.0dB/m/W

Weight

9g





◆   Value appling rated voltage
