CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-1340 SERIES

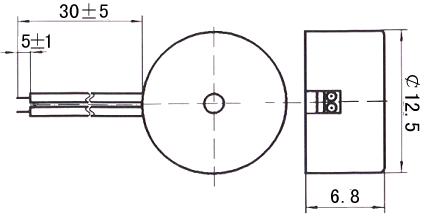

DIMEMSIONS     Unit:mm     Tolerance:±0.5







SPECIFICATIONS



Model No

QSR-1340

Rated Voltager

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

2mA at 4.0KHz/12Vp-p Square Wave

Min.Sound Pressure Level

80dB at 4.0KHz/12Vp-p Square Wave/10cm

Resonant Frequency

4.0±0.5KHz

Operating Temperature

-20℃~+80℃

Weight

1 g





◆   Value appling rated voltage
