CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-2310B SERIES

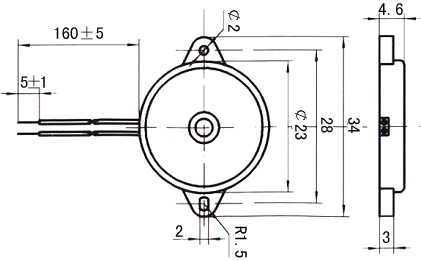

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSR-2310B

Rated Voltager

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

3mA at 4.0KHz/12Vp-p Square Wave

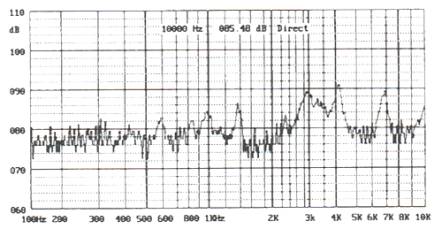

Min.Sound Pressure Level

80dB at 4.0KHz/12Vp-p Square Wave/30cm

Resonant Frequency

4.0±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

1 g





◆   Value appling rated voltage



Tel:+86-519-6464518     Fax: +86-519-6464189
