CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-2310C SERIES

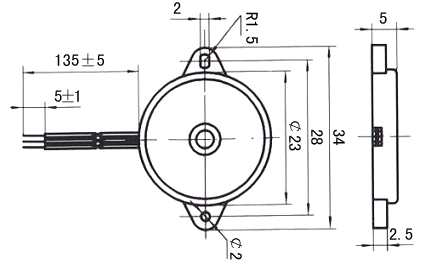

DIMEMSIONS     Unit:mm     Tolerance:±0.5







SPECIFICATIONS



Model No

QSR-2310C

Rated Voltager

6VDC

Max.Allowable Voltage

3~18VDC

Max.Rated Current

5mA at 6VDC

Min.Sound Pressure Level

80dB at 6VDC/30cm

Resonant Frequency

4.8±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

2 g



◆   Value appling rated voltage
