CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-3010C SERIES

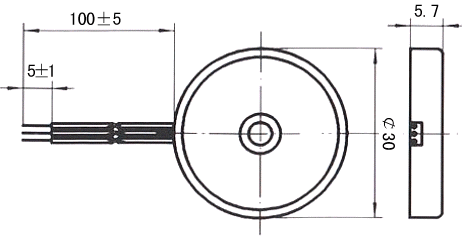

DIMEMSIONS     Unit:mm     Tolerance:±0.5







SPECIFICATIONS



Model No

QSR-3010C

Rated Voltager

6VDC

Max.Allowable Voltage

3~18VDC

Max.Rated Current

5mA at 6.0VDC

Min.Sound Pressure Level

80dB at 6VDC/30cm

Resonant Frequency

3.2±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

3.5 g





◆   Value appling rated voltage
