CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-3510E SERIES

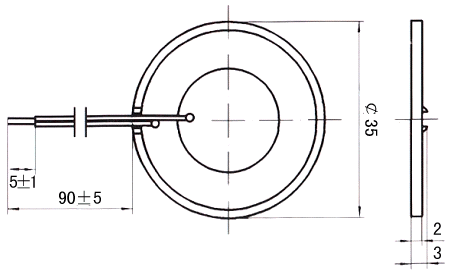

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSR-3510E

Rated Voltager

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

3mA at1.3KHz/12Vp-p Square Wave

Min.Sound Pressure Level

75dB at1.3KHz/12Vp-p Square Wave /10cm

Resonant Frequency

1.3±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

5 g



◆   Value appling rated voltage
