CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-4410A SERIES

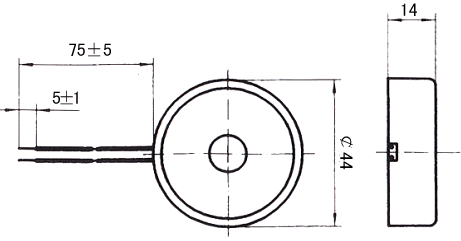

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSR-4410A

Rated Voltager

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

4mA at1.0KHz/12Vp-p Square Wave

Min.Sound Pressure Level

78dB at1.0KHz/12Vp-p Square Wave /30cm

Resonant Frequency

1.0±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

10 g





◆   Value appling rated voltage



Tel:+86-519-6464518     Fax: +86-519-6464189
