CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-4410B SERIES

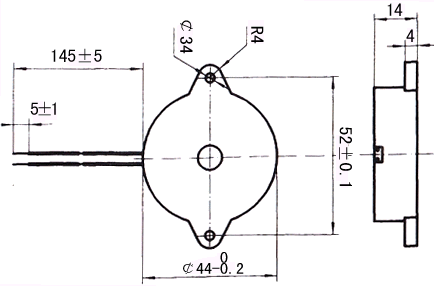

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSR-4410B

Rated Voltager

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

4mA at0.8KHz/12Vp-p Square Wave

Min.Sound Pressure Level

78dB at0.8KHz/12Vp-p Square Wave /30cm

Resonant Frequency

0.8±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

10 g



◆   Value appling rated voltage
