CHANGZHOU QISHENG ELECTRONICS COMPONET FACTORY



QSR-5020 SERIES

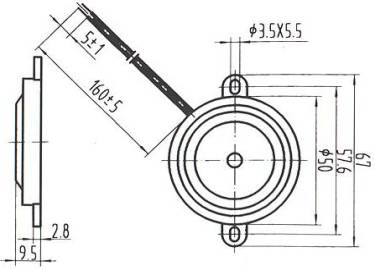

DIMEMSIONS     Unit:mm     Tolerance:±0.5





SPECIFICATIONS



Model No

QSR-5020

Rated Voltager

12Vp-p Square Wave

Max.Allowable Voltage

30Vp-p Square Wave

Max.Rated Current

4mA at 0.9KHz/12Vp-p Square Wave

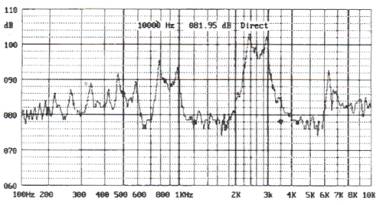

Min.Sound Pressure Level

80dB at 0.9KHz/12Vp-p Square Wave /30cm

Resonant Frequency

0.9±0.5KHz

Operating Temperature

-20℃~+60℃

Weight

12g





◆   Value appling rated voltage
